2-Way incognita HDT Series In-Wall Loudspeaker

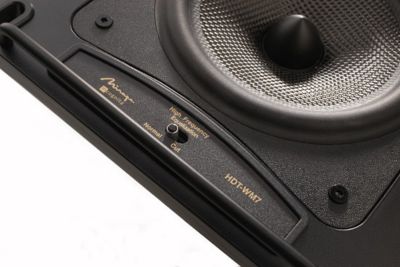

The HDTWM7 is a mulitpurpose in-wall speaker. It features a 1-inch PTH tweeter and a 6.5-inch carbon fiber woofer in a 2-way configuration. A high-cut switch is included for situations in which high frequency equalization is required. Look to the HDTWM7 as a high performance in-wall speaker for your home theater, kitchen or den.

Comparison Specifications

• 2-Way High-Performance In-Wall Loudspeaker

• Power Handling: 125 Watts Maximum

• Single 1" PTH (Pure Titanium Hybrid) Tweeter

• Single 6.5" Carbon Fiber Cone Midrange/Woofer

• Crossover Points: 2.5 kHz

• Frequency Response: 48 Hz ~ 20 kHz (+/- 3dB)

• Room Efficiency: 89 dB

• Impedance: 8 Ohms Nominal, 4 Ohms Minimum

• Recommended Amplifier Power: 30-125 Watts

Additional Specifications

• High Cut: 2 dB @ 2.5 kHz ~ 20 kHz

• Spring-Loaded, Gold-Plated Inputs

• Hole Cutout (Post-Construction Option): 13" x 9.7"

• MK-M-WM UltraDamped Mounting Kit Required For Installation

Dimensional Specifications

• Dimensions: 12.44" H x 9" W x 3.5" D

• Weight: 6 lbs.

Mirage HDT-WM7 Warranty Details

Five-Year Warranty
