Your versatile audio solution

When it comes to adding audio to your bedroom, kitchen, or office, you have three requirements. One, the system must be compact. Two, the system must be versatile. And three, the system has to churn out some high-performance audio. Satisfying all your demands, Yamaha presents the new MCR-230 micro system. Two 2-way, bass-reflex speakers team up with a 40W receiver/amplifier that plays CD and MP3 and sports a built-in iPod dock to bring you a versatile audio solution.

Hey, it's made for iPod

The Yamaha MCR-230 isn't just "iPod compatible"; it's made for iPod. All you have to do to continue listening to your latest iPod playlist once you've hung your hat is plug your iPod into the MCR-230's iPod dock, located right on the receiver unit's top panel. Sounds easy? Of course it is . . . it's made for iPod.

Four drivers, two speakers, one heck of a sound

The Yamaha MCR-230BL looks its two 2-way bookshelf speakers to serve up all your favorite audio with full lows and crisp detail. To this end, Yamaha pairs a 1" dome tweeter and 4" cone driver in each speaker with a bass-reflex porting system. While the tweeters and cone drivers take care of the high- and mid-range frequencies, the bass-reflex porting enhances bass extension and efficiency for improved low-frequency performance.

All audio welcome

These days, your music doesn't come in just one format. You've got CDs, MP3s, AACs, WAVs, and WMAs. Yamaha's MCR-230 microsystem combines playback support for all of these audio formats with a USB port, making it easy to play that new song you just downloaded on the 40W stereo speaker system. And if you're listening to an MP3 mix off of a CD, but you can't remember an artist's name, the MCR-230BL supports CD Text, displaying a disc's information on the receiver unit's LCD display.

Comparison Specifications

• Power output: 20W x 2 channels (40W total)
• CD player: Single-disc player with CD Text display
• Tuner: FM
• Speakers: Two 2-way, bass-reflex speakers / one 1" dome tweeter / one 4" cone driver
• Outputs: 1 subwoofer out
• Inputs: Integrated iPod dock / USB port / FM antenna in

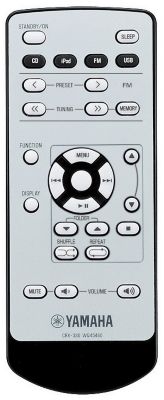

• Remote control: Included

Additional Specifications

• Frequency response (receiver): 20Hz - 20kHz
• Total harmonic distortion (receiver): 0.05% (10W/6 ohms)
• Input power (speaker): 30W normal / 90W maximum
• Frequency response (speaker): 60Hz - 50kHz
• Sensitivity (speaker): 84dB / 2.83V / 1m
• Crossover frequency (speaker): 8kHz
• Impedance (speaker): 6 ohms

Dimensional Specifications

• Dimensions: 7.06" W x 4.55" H x 11.0" D, receiver / 4.94" W x 7.56" H x 11.81" D, speaker
• Weight: 9.5 lbs, receiver / 4.6 lbs, speaker

Yamaha MCR230BL Warranty Details

2-year limited parts and labor warranty
